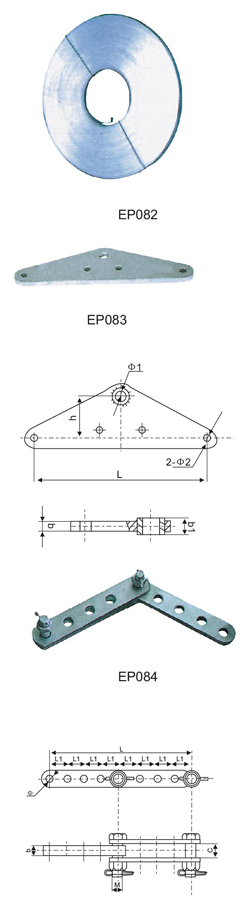

FLD Aluminium Armor Tape Yoke Plantes PT Adjuster Plates

Model Specification Weight(kg)
kg/m m/kg
FLD-1 1±10 0.027 37




Model Dimension(mm) Rated Failure Load Weight(kg)
b b1 h Φ1 Φ2 L
L-1040
 16 16 70 20 181 400 100 4.43
L-1240
 16 16 70 24 8 400 120 4.66
L-1640
 18 18 100 26 20 400 160 5.8
L-2140
 18 18 100 30 20 400 200 6.9
L-2050
 16 26 100 30 26 520 200 8
L-2055
 16 26 200 30 24 550 200 11.8
L-2540
 16 30 110 33 24 400 250 9
L-3040
 18 32 110 39 26 400 300 10
L-4255
 24 38 250 45 30 550 420 24.4
L-5040
 30 38 110 45 33 400 500 14.8
L-6040
 32 42 200 51 39 450 600 25.5
L-6050
 32 42 250 51 39 500 600 23.3












Model Dimensions(mm) Holding strength(KN) weight(kg)
L1 L2 M Φ b c L
PT-7
 45 60 16 18 16 18 225 345 70 2.1
PT-10
 50 65 18 20 16 20 250 390 100 3
PT-12
 60 75 22 24 16 24 300 465 120 5.2
PT-16
 65 80 24 26 18 26 325 505 160 7
PT-21
 70 90 27 30 26 30 350 550 210 10
PT-30
 80 100 36 39 32 38 400 630 300 16
PT-50
 160 100 42 45 38 40 470 1280 500 24.2
PT-60
 180 100 48 51 42 44 820 1390 600 31
